Feed Through Panel Mount Terminal Block Connector Pitch 15.0mm , 2P - 12P 600V 90A

Name: Feed Through Panel Mount Terminal Block Connector Pitch 150mm 2P 12P 600V 90A
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TD90-00

MOQ : 200

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Type : Panel Mount Terminal Block,Barrier terminal blocks, Power terminal blocks, Electrical terminal Block

Pitch : 15.0mm

Number Of Contacts : 2P-12P

Wire Range : 4-20

Rated Voltage : 600V

Rated Current : 90A

Color : Black

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Contact Now

Feed Through Panel Mount Terminal Block Connector Pitch 15.0mm, 2P - 12P 600V 90A

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Feed through terminal blocks, Feed through terminal connectors, through wall terminal block, Electrical terminal Blocks

How to order:
Feed Through Panel Mount Terminal Block Connector Pitch 15.0mm , 2P - 12P 600V 90A

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

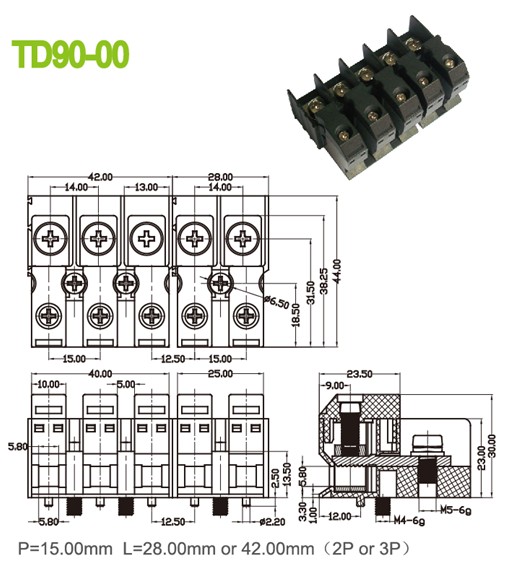

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 90	600 / 90
Wire Range AWG	4-20	4-20
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	800 / 90	1000 / 90	1000 / 90
Rated Surge Voltage KV	8	8	6
Rated Connecting Capacity mm²	16
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Conduction Board / Plating	Brass / Tin Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	10-12
Screw / Torque / lbf.in	M5 / 12-16

Feed Through Panel Mount Terminal Block Connector Pitch 15.0mm , 2P - 12P 600V 90A

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
