3.50mm Electrical Screwless Terminal Block , 300V 10A Spring Clamp Terminal Block

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TJ381-12V

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Type : Screwless Terminal Block,Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connecto

Pitch : 3.50mm

Number Of Contacts : 2P-28P

Wire Range : 16-22

Rated Voltage : 300V

Rated Current : 10A

Color : Grey

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Contact Now

Detailed product Description:
3.50mm Electrical Screwless Terminal Block, 300V 10A Spring Clamp Terminal Block, 2P-28P
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

PCB Spring terminal blocks, Spring Clamp terminal blocks, Screwless terminal blocks, Electrical terminal Blocks, terminal block factory


How to order:

3.50mm Electrical Screwless Terminal Block , 300V 10A Spring Clamp Terminal Block


Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

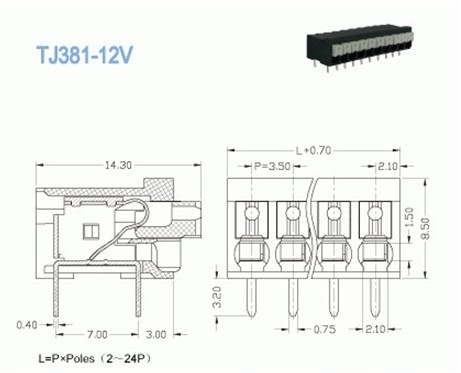

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300/10

Wire Range AWG

16-22

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

160 / 10

250 / 10

400 / 10

Rated Surge Voltage KV

2.5

2.5

2.5

Rated Connecting Capacity mm2

1.5

Material

Insulation Material / Inflammability Class

LCP / UL94, V-0

Spring / Plating

Stainless Steel / -

Terminal / Plating

Phosphor Bronze / Tin Plated

Other Data

PCB Hole Diameter mm

φ1.1

Stripping Length mm

8-9




3.50mm Electrical Screwless Terminal Block , 300V 10A Spring Clamp Terminal Block


Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
