600V 500A High Current Terminal Block Heavy Voltage Electric Terminal Connector

Name: 600V 500A High Current Terminal Block Heavy Voltage Electric Terminal Connector
Brand: SCED
Price: 1 USD

Quality 600V 500A High Current Terminal Block Heavy Voltage Electric Terminal Connector wholesale

Brand Name : SCED

Model Number : TR500-00-BM0

Certification : UL, CE

Place of Origin : Shenzhen, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 7-20 working days

Packaging Details : Standard Export Carton

Applications : PCB,Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Black

Number of Contacts : Any Poles Available

Pitch : 60.00mm

Rated Current : 500A

Rated Voltage : 600V

Type : High Current Barrier Terminal Block, Power terminal blocks, Electrical terminal Blocks

Wire Range : 350-750kcmil

Contact Now

600V 500A High Current Terminal Blocks Heavy Voltage Electric Terminal Connector

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Level; □Double levels; □Triple levels

Standard color: Black. Other colors also available, please refer to below How to Order and select the color

you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks

How to order:

600V 500A High Current Terminal Block Heavy Voltage Electric Terminal Connector

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,

Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,

Elevator, etc..

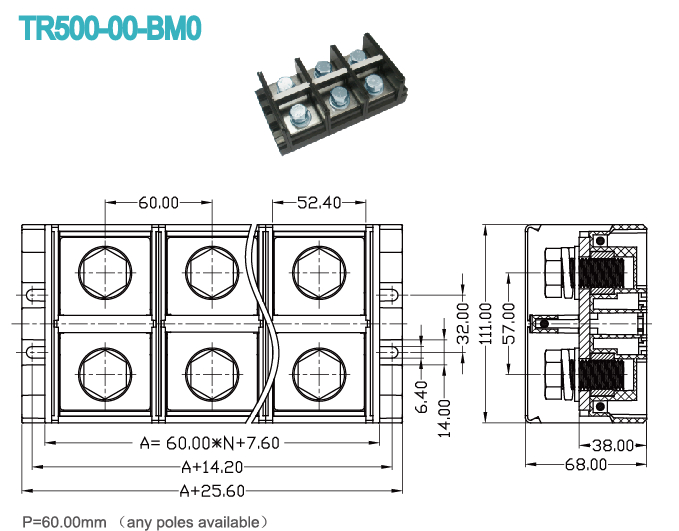

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 500	600 / 500
Wire Range AWG	350-750kcmil	350-750kcmil
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	1000 / 500	1000 / 500	1000 / 500
Rated Surge Voltage KV	10	10	10
Rated Connecting Capacity mm²	380
Material
Insulation Material / Inflammability Class	PC / UL94, V-0
Terminal / Plating	Brass / Nickel Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	30-35
Screw / Torque / lbf.in	M12 / 200-213

600V 500A High Current Terminal Block Heavy Voltage Electric Terminal Connector
