7.50mm Double Levels Pluggable Terminal Block Header For PCB PA66 Male Sockets 2-16P

  • 1
  • 2

Brand Name : SCED

Model Number : TP508P-75-GY

Certification : UL, CE

Place of Origin : Suzhou, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 20-45 working days

Packaging Details : Packaging Details: Standard export packing carton, or according to customers demand.

Type : Pluggable Terminal Block,Pluggable Terminal Blocks, Plug-in Terminal Blocks

Pitch : 7.50mm

Number Of Contacts : 6-16P

Rated Voltage : 300V

Rated Current : 15A

Color : Grey

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Contact Now

7.50mm Double Levels Pluggable Terminal Block Header For PCB PA66 Male Sockets 2-16P
□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet
□Single Level; ■Double Levels; □Triple Levels

This male socket match with female plug series: TP381P-00, TP381P-01, TP381P-02, TP381P-03, TP381P-04

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors


How to order:

7.50mm Double Levels Pluggable Terminal Block Header For PCB PA66 Male Sockets 2-16P

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

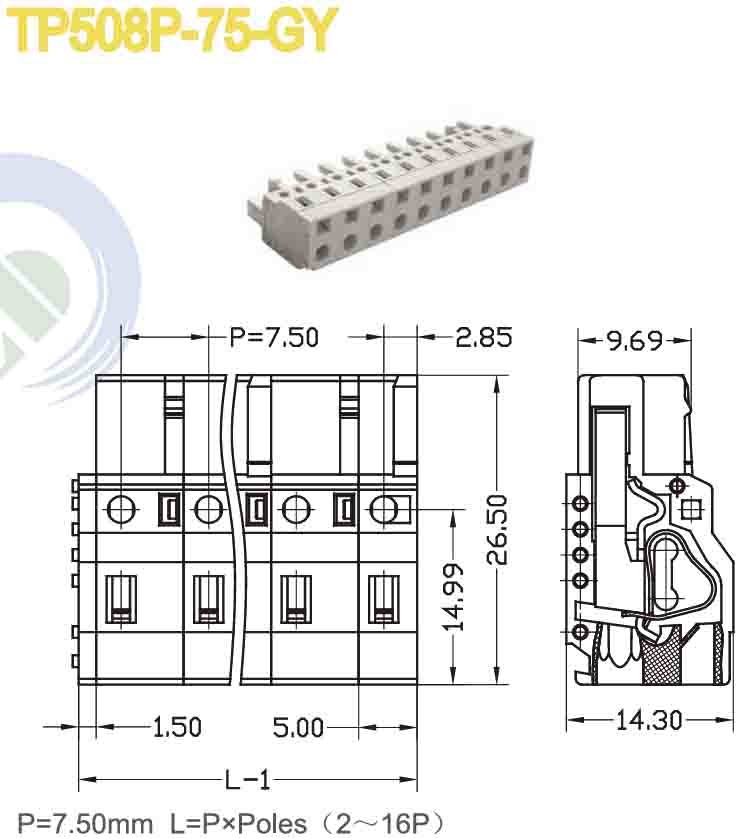

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 15

Wire Range AWG

14-26

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

320 / 15

320 / 15

630 / 15

Rated Surge Voltage KV

4

4

4

Rated Connecting Capacity mm²2.5

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / PlatingStainless Steel / -

Contactor / Plating

Phosphor Bronze / Tin Plated

Other Data

Stripping Length mm

10-11

PinDimension mm




7.50mm Double Levels Pluggable Terminal Block Header For PCB PA66 Male Sockets 2-16P


Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
